Magnetic Components-DH

Item No.：

Category：

DH-Series

Specifications

Permanent magnet synchronous coupling can use the magnetic force between internal and external rotors to transfer torque.The precision loss caused by mechanical wear can be effectively controlled and the service life is longer. This product can be customized according to customer installation requirements. Accessories can be used on older models to replace conventional sealed couplings to meet production requirements.

Disk coupling is a power transmission device for non-contact air separation transmission by the interaction principle of strong magnet’s suction and repulsive force.

Tel: +86 17788593048
E-mail:dlhaa@jinyiyang.com

Keywords: Coupling,Disk Couplings,Magnetic Agitator

Inquiry Message

Description

This product can be customized according to customer installation requirements. Accessories can be used on older models to replace conventional sealed couplings to meet production requirements.

Outer rotor
Matrix: carbon steel,electroplated

Canister
Base: PEEK,1.5MPA

Inner rotor
Matrix: carbon steel 304 431
Magnetic material: Sm2Co17

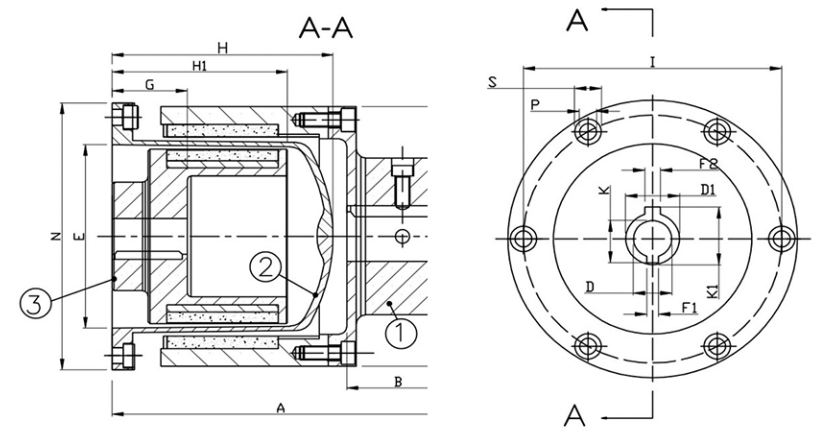

Type	A	B	C	D	D1	M	H	H1	G	E	N	I	S	P	F1	F2	K	K1
DH12-20	182	55	146	20	28	58	119	54.5	40.5	103	150	134	14	9	6	8	22.8	31.3
DH12-40								74.5
DH12-60				24	38	68		84.5							8	10	27.3	41.3
DH12-80								94.5
DH28-50	195	60	168	25	42	100	130	55.5	45.5	122	175	159	14	9	8	8	28.3	31.3
DH28-100								80.5								12		45.3
DH28-150								106
DH55-95	270	80	186	30	48	100	184	91	75	141	195	172	16	11	8	12	28.3	45.3
DH55-190								116							10		33.3
DH55-285								141								14		51.8

Discover the power of DH magnetic components, meticulously designed to deliver exceptional performance and reliability in your electronic devices. Our cutting-edge solutions are crafted with precision to ensure seamless integration into a wide range of applications, from advanced telecommunications systems to energy-efficient motor controls.

Crafted with Quality Materials: Every DH magnetic component is made using high-grade materials that guarantee robustness and longevity, withstanding the test of time and demanding environments.

Advanced Technology: Leveraging innovative technologies, our components offer superior electromagnetic characteristics, including high permeability and low core loss, ensuring optimal efficiency in your designs.
