Magnetic Components-DSM

Item No.：

Category：

DSM-Series

Specifications

Permanent magnet synchronous coupling can use the magnetic force between internal and external rotors to transfer torque.The precision loss caused by mechanical wear can be effectively controlled and the service life is longer. This product can be customized according to customer installation requirements. Accessories can be used on older models to replace conventional sealed couplings to meet production requirements.

Disk coupling is a power transmission device for non-contact air separation transmission by the interaction principle of strong magnet’s suction and repulsive force.

Tel: +86 17788593048
E-mail:dlhaa@jinyiyang.com

Keywords: Coupling,Disk Couplings,Magnetic Agitator

Inquiry Message

Description

This product can be customized according to customer installation requirements. Accessories can be used on older models to replace conventional sealed couplings to meet production requirements.

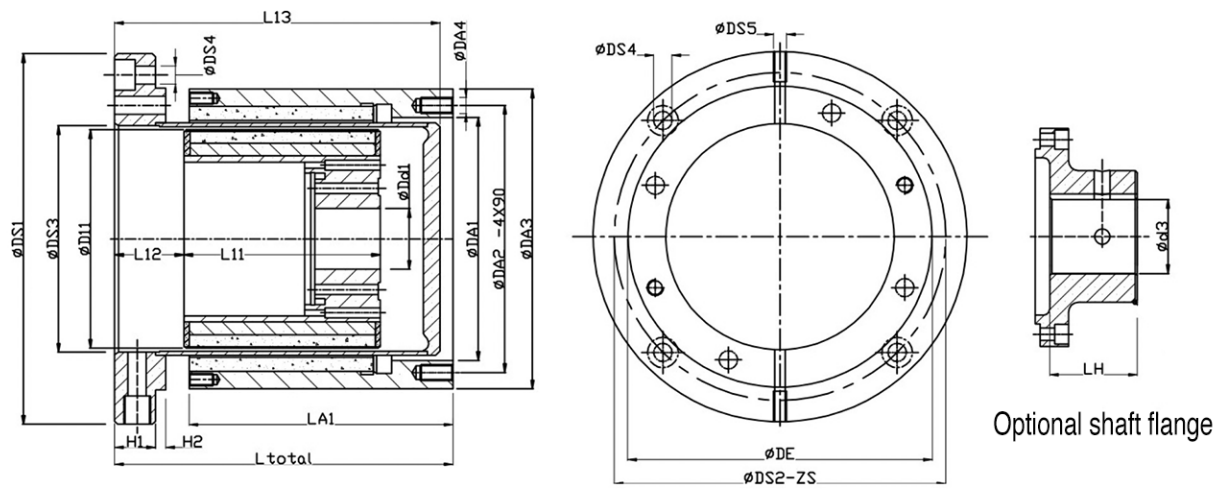

Type	Pwer(Nm)		nner rotor					Canster										Quie rotor
	NdFcB	Sm:Col7	Dd1		D11	L11	L12	DsI	Ds2	Ds3	Ds4	Ds5	L13	Zs	DE	H1	H2	DA1	DA2	DA3	DA4	LA1	Lt
			min	max
DSM1041-30	30	20	12	28	77	45	49	142	128	80	7.0	GV1/8	118	4	118	18	5	98	106	117	8-M6	57	118
DSM1041-60	60	40				66	28															87
DSM1066-30	60	40	20	48	108	96	36	183	162	112	8.0	GV1/2	159	4	148	20	5	120	130	148	8-M8	129	167.5
DSM1008-60	120	80
DSM1068-90	180	120

Type	Pwer (Nm)		mmer ralor					Cariste										Outer rolo
	eFeB	SmCo17	Ddi		D11	L11	L12	Da1	Ds2	Ds3	Ds4	Ds5	L13	Zs	DE	Hi	H2	DA1	DA2	DA3	DA4	LA1	L
			min	max
DSM1101-60	300	200	42	78	52	126	39	245	216	158	9.0	G1/4	159	8	197	22	6	168	180	198	8-M8	166	208
DSM1101-90	450	300
DSM1101-120	600	400
DSM1151-60	630	510	85	96	248	156	71	345	320	250	11.0	G1/4	162	8	300	34	8	266	282	20.5	8-M10	203	277
DSM1151-90	950	770
DSM1151-120	1260	030
D5M115-150	1580	290
