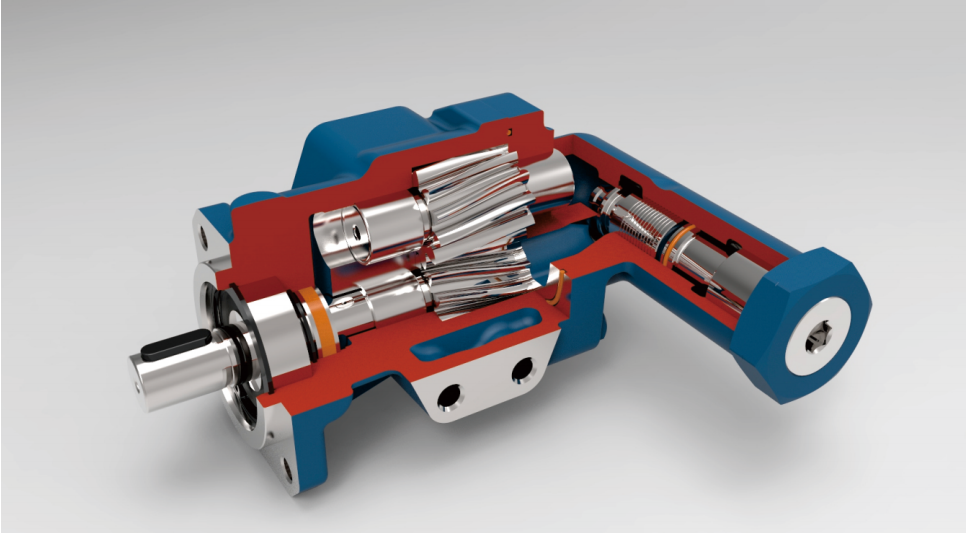

Gear Pump

Item No.：

Category：

Gear Pump

Specifications

Disk coupling is a power transmission device for non-contact air separation transmission by the interaction principle of strong magnet’s suction and repulsive force.

Tel: +86 17788593048
E-mail:dlhaa@jinyiyang.com

Keywords: Coupling,Disk Couplings,Magnetic Agitator

Inquiry Message

Description

Permanent magnet synchronous coupling can use the magnetic force between internal and external rotors to transfer torque.The precision loss caused by mechanical wear can be effectively controlled and the service life is longer.

This product can be customized according to customer installation requirements. Accessories can be used on older models to replace conventional sealed couplings to meet production requirements.

Features

Asserted benchmark displacement （ml/r）:

4 / 6 / 8 / 10 / 12 / 16 / 20 / 25 / 32 / 40 / 50 / 63 / 80 /

100 / 112 / 150 / 180 / 200~630

Adjusted numerical value of overflow valve:

16bar (according to the need to adopt higher pressures)

Seal material: fluorine rubber

Applied viscosity (cSt)：12~20000

Applied scope:

Reduction box, wind power, lubrication system, filtration system, gas stations, vacuum machinery, engine...

Attention:

● Fluid has basic lubricating and compatible chemical characteristic, and it exclude solid impurity substance.

● Avoid idling

● The pump can only be operated in appointed direction, or else seal of the shaft will be wrecked.

● To avoid excessive pressure, the sysrem or pump should be equipped with a relief valve.

● Relief valve equipped with the pump functions as an atmospheric valve in a short time, other than a overflow valve.

● An additional overflow valve should be installed if overflowing exists in a long time.

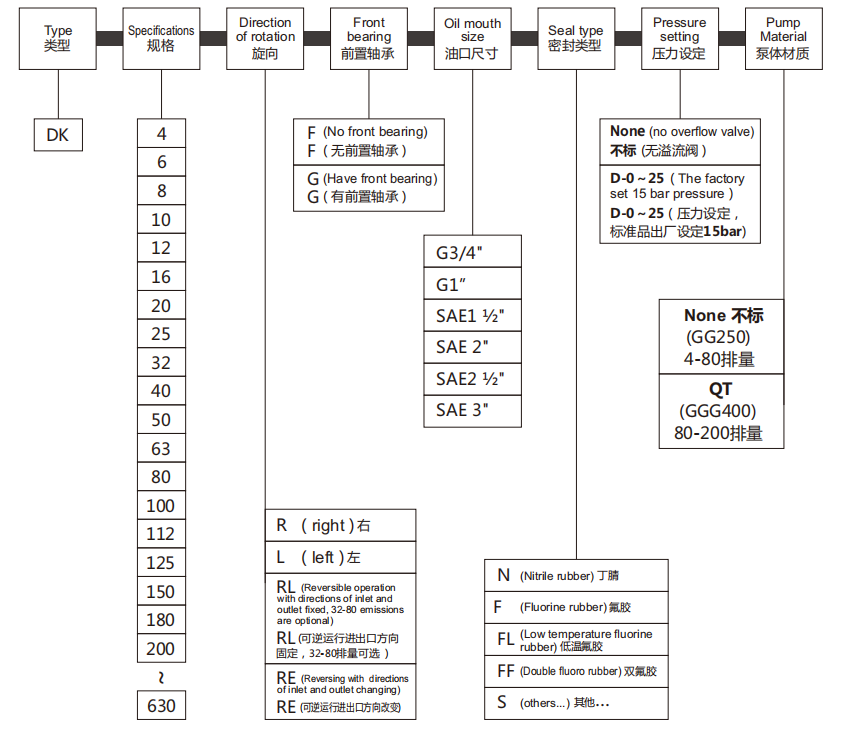

Model choose

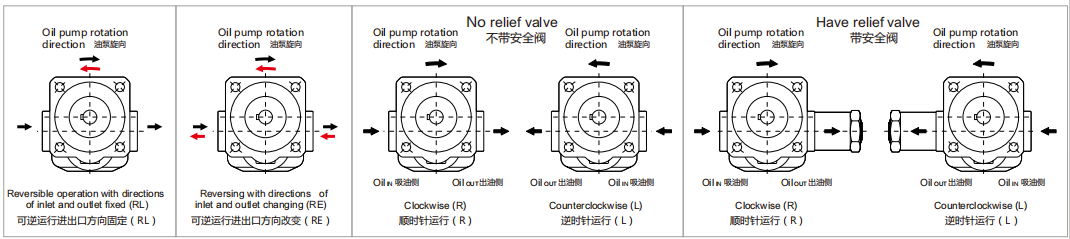

Direction of rotation

Technical data (rotationrate950rpm)

Pump type	Parameter	Pressure（bar）								Displacement (cm³/rev)
Pump type	Parameter	2.0	4.0	6.0	8.0	10.0	15.0	20.0	25.0	Displacement (cm³/rev)
DK4	l/min	3.80	3.70	3.70	3.60	3.50	3.40	3.20	3.00	4
	NKW	0.05	0.06	0.07	0.08	0.09	0.13	0.16	0.20
	KW	0.25	0.25	0.25	0.25	0.25	0.25	0.25	0.37
DK6	l/min	5.80	5.70	5.60	5.50	5.40	5.10	4.90	4.70	6
	NKW	0.06	0.07	0.09	0.12	0.14	0.19	0.25	0.30
	KW	0.25	0.25	0.25	0.25	0.25	0.37	0.37	0.55
DK8	l/min	7.40	7.30	7.20	7.10	6.90	6.60	6.30	5.90	8
	NKW	0.08	0.09	0.12	0.14	0.17	0.24	0.32	0.38
	KW	0.25	0.25	0.25	0.25	0.25	0.37	0.55	0.55
DK10	l/min	9.20	9.00	8.90	8.70	8.60	8.20	7.70	7.30	10
	NKW	0.09	0.10	0.14	0.17	0.21	0.29	0.38	0.47
	KW	0.25	0.25	0.25	0.25	0.37	0.37	0.55	0.75
DK12	l/min	11.40	11.30	11.10	10.90	10.70	10.20	9.70	9.40	12
	NKW	0.10	0.12	0.16	0.21	0.25	0.36	0.47	0.58
	KW	0.25	0.25	0.25	0.37	0.37	0.55	0.75	0.75
DK16	l/min	14.70	14.60	14.30	14.00	13.80	13.30	12.60	11.90	16
	NKW	0.12	0.15	0.20	0.26	0.31	0.45	0.60	0.74
	KW	0.25	0.25	0.37	0.37	0.55	0.55	0.75	1.10
DK20	l/min	18.50	18.30	18.00	17.60	17.30	16.50	15.80	14.90	20
	NKW	0.14	0.18	0.25	0.32	0.39	0.56	0.74	0.92
	KW	0.25	0.25	0.37	0.55	0.55	0.75	1.10	1.50
DK25	l/min	23.10	22.60	22.30	21.90	21.50	20.60	19.70	18.30	25
	NKW	0.16	0.21	0.30	0.39	0.48	0.70	0.92	1.14
	KW	0.25	0.37	0.55	0.55	0.75	1.10	1.50	1.50

Pump type	Parameter	Pressure（bar）								Displacement (cm³/rev)
Pump type	Parameter	2.0	4.0	6.0	8.0	10.0	15.0	20.0	25.0	Displacement (cm³/rev)
DK32	l/min	29.00	29.00	28.00	28.00	27.00	26.00	25.00	23.00	32
	NKW	0.27	0.30	0.40	0.50	0.60	0.90	1.20	1.50
	KW	0.37	0.55	0.55	0.75	0.75	1.50	1.50	2.20
DK40	l/min	37.00	36.00	36.00	35.00	34.00	33.00	31.00	29.00	40
	NKW	0.28	0.40	0.50	0.60	0.80	1.10	1.50	1.80
	KW	0.37	0.55	0.75	1.10	1.10	1.50	2.20	2.20
DK50	l/min	46.00	45.00	44.00	43.00	43.00	41.00	38.00	36.00	50
	NKW	0.40	0.50	0.60	0.80	1.00	1.40	1.90	2.30
	KW	0.55	0.75	0.75	1.10	1.50	2.20	3.00	3.00
DK63	l/min	58.00	57.00	56.00	55.00	54.00	51.00	48.00	45.00	63
	NKW	0.50	0.60	0.80	1.00	1.20	1.80	2.40	2.90
	KW	0.75	0.75	1.10	1.50	2.20	2.20	3.00	4.00
DK80	l/min	73.0	72.0	71.0	69.0	68.0	65.0	67.0	58.0	80
	NKW	0.60	0.70	1.00	1.30	1.60	2.30	3.00	3.70
	KW	0.75	1.10	1.50	1.50	2.20	3.00	4.00	5.50
DK100	l/min	98.00	97.00	94.00	93.00	92.00	88.00	85.00	82.00	100
	NKW	0.60	0.90	1.30	1.80	2.30	3.20	3.90	4.40
	KW	0.75	1.10	1.50	2.20	3.00	4.00	5.50	5.50
DK112	l/min	104.00	103.00	101.00	100.00	98.00	97.00	92.00	87.00	112
	NKW	0.80	1.00	1.60	2.20	2.80	3.50	4.50	5.00
	KW	1.10	1.50	2.20	3.00	4.00	4.00	5.50	7.50
DK125	l/min	123.00	118.00	113.00	107.00	102.00	98.00	93.00	89.00	125
	NKW	1.60	1.50	1.70	1.80	2.40	3.60	4.90	6.00
	KW	2.20	2.20	2.20	2.20	3.00	4.00	5.50	7.50
DK150	l/min	141.00	137.00	133.00	128.00	123.00	118.00	112.00	106.00	150
	NKW	2.10	2.20	2.30	2.50	3.10	4.40	5.80	7.20
	KW	3.00	3.00	3.00	3.00	4.00	5.50	7.50	11.00
DK180	l/min	173.00	169.00	165.00	159.00	153.00	147.00	142.00	135.00	180
	NKW	2.20	2.60	2.70	3.00	3.90	5.40	6.90	8.40
	KW	3.00	4.00	4.00	4.00	5.50	7.50	11.00	11.00
DK200	l/min	190.00	186.00	182.00	176.00	171.00	166.00	161.00	154.00	200
	NKW	2.90	3.00	3.10	3.50	4.40	6.00	7.70	9.30
	KW	4.00	4.00	4.00	5.50	5.50	7.50	11.00	11.00

Pump type	Parameter	Pressure（bar）								Displacement (cm³/rev)
Pump type	Parameter	2.0	4.0	6.0	8.0	10.0	15.0	20.0	25.0	Displacement (cm³/rev)
DK4	l/min	5.70	5.60	5.60	5.50	5.40	5.30	5.10	4.90	4
	NKW	0.10	0.13	0.16	0.18	0.21	0.29	0.30	0.35
	KW	0.25	0.25	0.25	0.25	0.37	0.37	0.37	0.37
DK6	l/min	9.00	8.90	8.80	8.70	8.60	8.30	8.00	7.80	6
	NKW	0.08	0.11	0.15	0.18	0.21	0.30	0.38	0.47
	KW	0.25	0.25	0.25	0.37	0.37	0.55	0.55	0.75
DK8	l/min	11.30	11.20	11.10	10.90	10.90	10.50	10.20	9.80	8
	NKW	0.15	0.19	0.24	0.29	0.33	0.40	0.54	0.65
	KW	0.25	0.25	0.37	0.37	0.55	0.53	0.75	0.75
DK10	l/min	14.20	14.10	14.00	13.80	13.60	13.20	12.80	12.40	10
	NKW	0.18	0.19	0.23	0.30	0.35	0.46	0.58	0.72
	KW	0.25	0.25	0.25	0.37	0.55	0.55	0.75	1.10
DK12	l/min	17.20	17.10	17.00	16.90	16.80	16.50	15.90	15.40	12
	NKW	0.20	0.21	0.28	0.32	0.39	0.55	0.72	0.89
	KW	0.25	0.25	0.37	0.55	0.55	0.75	1.10	1.10
DK16	l/min	22.60	22.40	22.20	22.00	21.70	21.10	20.50	19.80	16
	NKW	0.24	0.31	0.38	0.45	0.57	0.82	1.02	1.33
	KW	0.37	0.37	0.55	0.55	0.75	1.10	1.10	1.50
DK20	l/min	29.77	28.90	28.03	27.40	27.10	26.40	25.60	24.70	20
	NKW	0.26	0.36	0.44	0.53	0.63	0.87	1.14	1.41
	KW	0.37	0.55	0.55	0.75	1.10	1.10	1.50	2.20
DK25	l/min	36.50	36.20	35.70	35.20	34.60	33.20	32.40	31.00	25
	NKW	0.46	0.60	0.73	0.88	1.00	1.18	1.50	1.75
	KW	0.55	0.75	1.10	1.10	1.50	1.50	2.20	2.20

Pump type	Parameter	Pressure（bar）								Displacement (cm³/rev)
Pump type	Parameter	2.0	4.0	6.0	8.0	10.0	15.0	20.0	25.0	Displacement (cm³/rev)
DK32	l/min	46.00	46.00	45.00	44.00	44.00	43.00	42.00	41.00	32
	NKW	0.54	0.70	0.82	1.12	1.29	1.60	2.10	2.40
	KW	0.75	1.10	1.10	1.50	1.50	2.20	3.00	4.00
DK40	l/min	57.00	57.00	56.00	56.00	55.00	53.00	51.00	50.00	40
	NKW	0.60	0.80	1.00	1.20	1.40	1.80	2.40	2.90
	KW	0.75	1.10	1.50	1.50	2.20	2.20	3.00	4.00
DK50	l/min	72.00	71.70	71.50	71.00	69.00	67.00	65.00	63.00	50
	NKW	0.70	0.94	1.23	1.47	1.74	2.20	2.80	3.50
	KW	1.10	1.50	1.50	2.20	2.20	3.00	4.00	5.50
DK63	l/min	91.50	91.00	90.60	90.00	89.00	86.70	85.70	84.00	63
	NKW	1.05	1.34	1.64	1.93	2.24	2.90	3.80	4.50
	KW	1.50	2.20	2.20	3.00	3.00	4.00	5.50	5.50
DK80	l/min	119.0	119.0	119.0	118.0	116.0	110.0	106.0	99.0	80
	NKW	1.20	1.50	1.87	2.30	2.60	3.40	4.30	5.20
	KW	1.50	2.20	3.00	3.00	4.00	5.50	5.50	7.50
DK100	l/min	148.00	147.00	144.00	143.00	142.00	138.00	135.00	132.00	100
	NKW	1.20	1.70	2.20	2.70	3.20	4.40	5.70	6.90
	KW	1.50	2.20	3.00	4.00	4.00	5.50	7.50	11.00
DK112	l/min	157.00	156.00	154.00	153.00	151.00	150.00	145.00	140.00	112
	NKW	1.40	2.00	2.60	3.10	3.70	5.10	6.50	7.80
	KW	2.20	3.00	3.00	4.00	5.50	7.50	7.50	11.00
DK125	l/min	183.00	179.00	175.00	171.00	168.00	161.00	155.00	150.00	125
	NKW	2.40	2.50	2.60	3.20	3.80	5.40	7.40	9.30
	KW	3.00	3.00	3.00	4.00	5.50	7.50	11.00	11.00
DK150	l/min	219.00	215.00	211.00	207.00	204.00	195.00	187.00	179.00	150
	NKW	3.30	3.30	3.50	3.80	4.70	6.70	8.90	11.00
	KW	4.00	4.00	4.00	5.50	5.50	7.50	11.00	15.00
DK180	l/min	260.00	256.00	252.00	248.00	245.00	236.00	228.00	221.00	180
	NKW	3.90	4.00	4.10	4.70	5.90	8.20	10.60	12.80
	KW	5.50	5.50	5.50	5.50	7.50	11.00	15.00	15.00
DK200	l/min	290.00	287.00	284.00	281.00	278.00	271.00	264.00	257.00	200
	NKW	4.40	4.60	4.80	5.30	6.70	9.20	11.70	14.20
	KW	5.50	5.50	5.50	7.50	7.50	11.00	15.00	18.50
