Magnetic Agitator
Item No.：
Category：
Specifications
Disk coupling is a power transmission device for non-contact air separation transmission by the interaction principle of strong magnet’s suction and repulsive force.
Tel: +86 17788593048
E-mail:dlhaa@jinyiyang.com
Keywords: Coupling,Disk Couplings,Magnetic Agitator
Description
Permanent magnet synchronous coupling can use the magnetic force between internal and external rotors to transfer torque.The precision loss caused by mechanical wear can be effectively controlled and the service life is longer.
This product can be customized according to customer installation requirements. Accessories can be used on older models to replace conventional sealed couplings to meet production requirements.
Magnetic coupling drive is the key component of magnetic stirring reactor. It is a transmission device that uses permanent magnet material for coupling transmission, which changes the dynamic seal structure of traditional mechanical seal and packing seal that can pass the bushing or packing seal stirring shaft into static seal structure.
It is the most ideal device for chemical reaction under high temperature and high pressure, especially for chemical reaction of flammable, explosive and toxic medium.
|

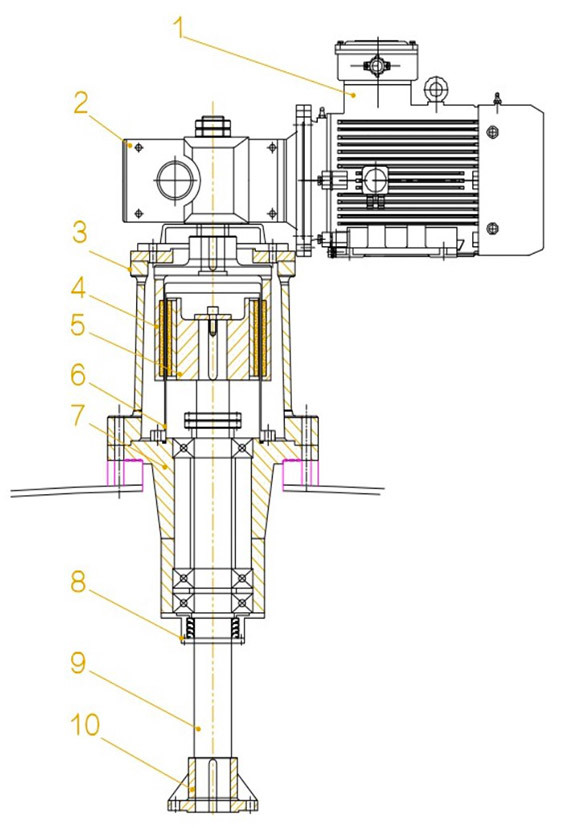

Part Name |
Numbe |
Material |
Notes |
|
|
1 |
Explosion-ProofMotor |
1 |
Combined parts |
|
|
2 |
Reducer |
1 |
Welding parts |
|
|
3 |
Connecting bel |
1 |
Combined parts |
|
|
4 |
Outer rotor |
1 |
Combined parts |
|
|
5 |
Inner rotor |
1 |
316L |
|
|
6 |
Pressureseal cover |
1 |
316L |
|
|
7 |
Bearing pedestal assembly |
1 |
316L |
|
|
8 |
Front sealseatofbearing |
1 |
316L |
|
|
9 |
Outputshaft |
1 |
316L |
|
|
10 |
Connecting flange |
1 |
316L |
|
|
Technical Parameters Of Magnetic Agitator Selection |
|||
|
CustomerName |
|
Date |
|
|
Tel/Fax |
|
|
|
|
Specifications |
|||
|
Power |
KW |
||
|
Design Pressure |
MPA |
||
|
Design Temperature |
℃ |
||
|
Motor |
anti-explosion |
||
|
Reducer |
cycloidal-pin whee |
||
|
Agitationspeed |
r/min |
||
|
Torque |
N·M |
||
|
Flange Size Of MixingEnd |
|
||
|
Installchanne |
yesselflange |
||
The magnetic drive agitator is a highly efficient, reliable mixing solution designed for various industrial applications, especially where sealed, leak-proof operation is crucial. This agitator utilizes a magnetic coupling system to transfer torque from the motor to the agitator shaft without the need for mechanical seals or direct contact, eliminating the risk of leakage and contamination.
Built for durability, the magnetic drive agitator is ideal for handling aggressive, viscous, or hazardous materials in processes such as chemical mixing, pharmaceutical production, and food processing. Its maintenance-free design ensures long-term performance and reduces downtime, contributing to cost savings.
With its compact design, the magnetic drive agitator is easy to install and operate. The absence of seals also enhances its reliability and performance, making it a preferred choice in applications requiring high safety standards. Whether for batch processing or continuous operations, this agitator ensures uniform mixing, improving product consistency and quality.
